Overview

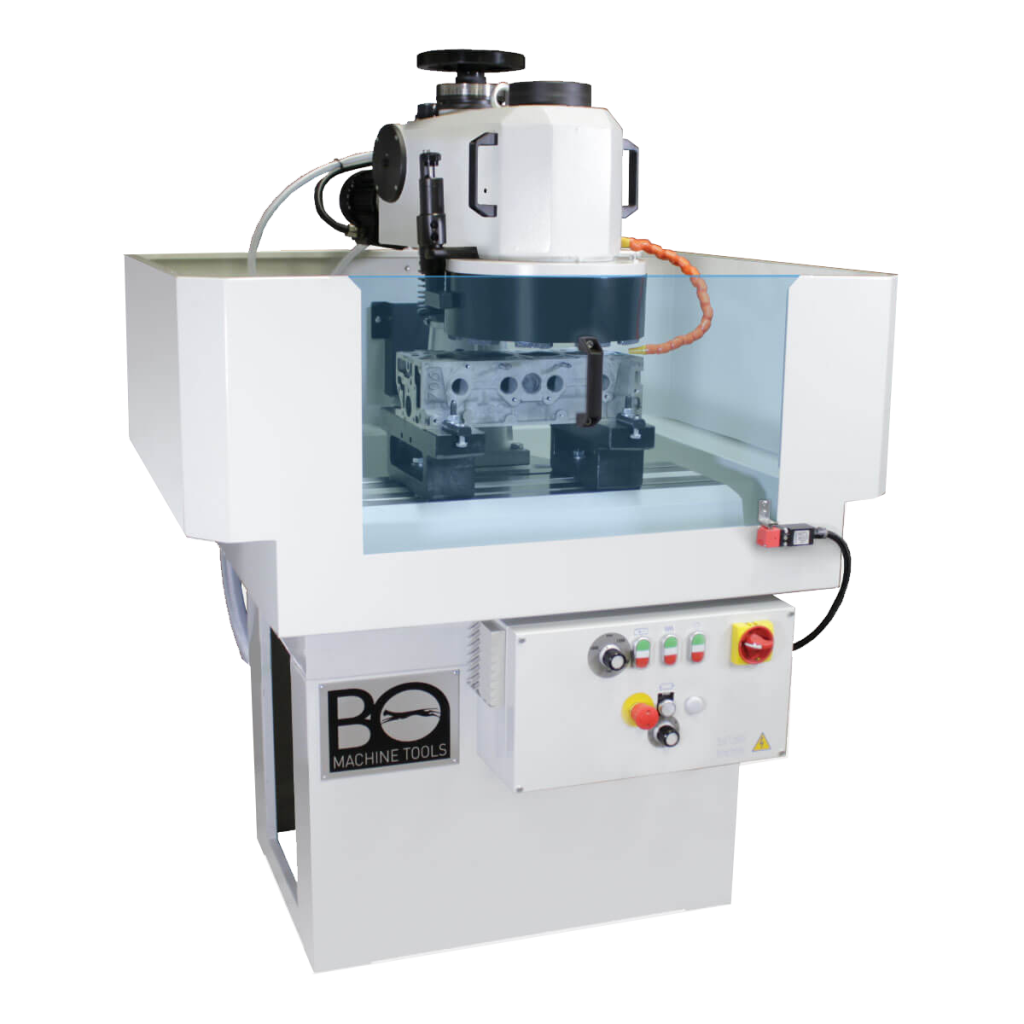

The BO Machine Tools STC330 is a resurfacing machine for engine heads and is extremely versatile and easy to use. It is recommended for engine repair shops that need a compact, reliable and durable machine.
The main assembly, composed of table, column and head, is made of solid cast iron and rests on a sturdy sheet metal base. Its typical “flag” movement allows the machining of cast iron and aluminum heads on surfaces ranging from approximately 300×300 to 800×100 mm.
The machine is equipped with both grinding stones and coolant system and with PCD/CBN cutting tool, thus allowing maximum functionality to the operator.
Al the controls are located on a convenient front panel.
The STC330 is supplied as standard, with variable rotation speed of the grinding wheel/tool, and the variable feed speed and the automatic head feed inverting system.
Features and Tooling
Standard Configuration
- Base cabinet
- Cooling system complete with pump and tank
- Grinding wheel with grinding stones for cast iron
- Splash and safety shield
- Grinding stones dressing tool with diamon
- Head cutting tool
- Pair of flat supports
- Fixing clamps
Capacity
| Table dimension | 670mm x 270mm |
| Max distance between table and wheel | 330mm |
| Grinding wheel vertical displacement | 205mm |
| Grinding wheel diamter | 330mm |
| Variable grinding wheel rotation | 700 – 1500 RPM |
| Variable feed speed | 10 – 145 mm/min |
| Grinding wheel motor power | 2.2 kW |
| Hard feed motor poweer | 0.11 kW |
| Dimensions | 1220 x 1080 x 1670mm |
| Weight | 405kg |
