Robins RubiSurf 1.9

CNC Automatic Programmable Cylinder Block and Head Surfacing Machine

Contact us get a quote

Photo Gallery

Machine Operations

  • Cylinder Block and Head Surfacer


Rubisurf 1.9 Brochure

Product Details

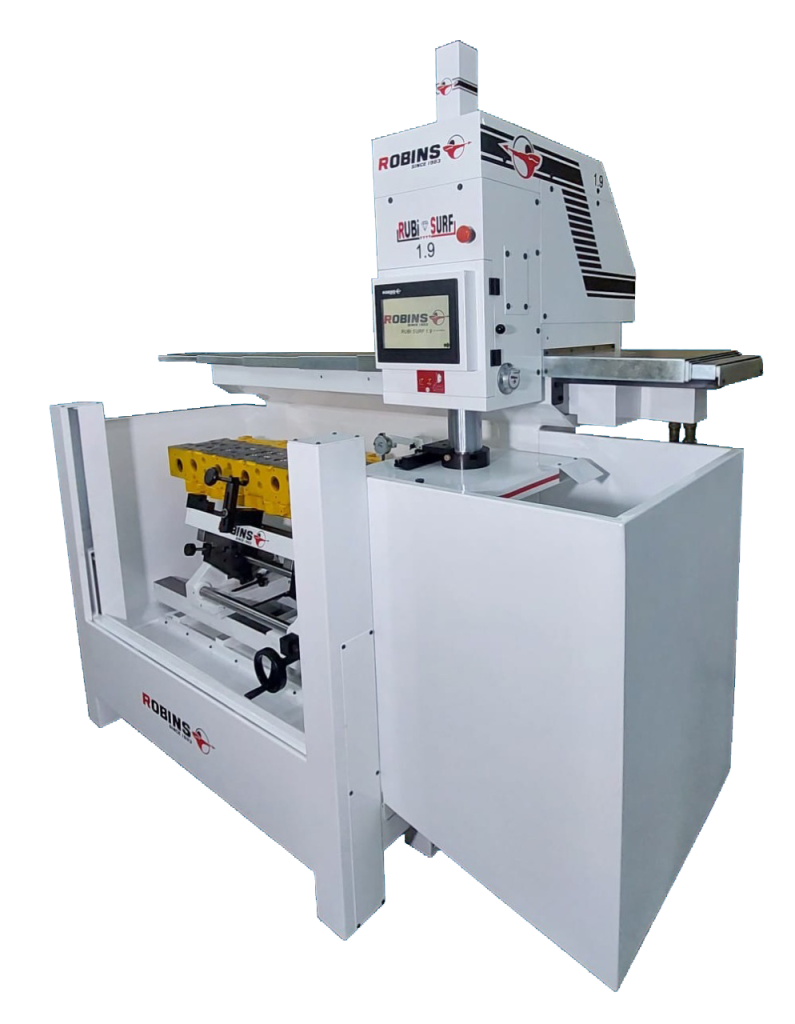

Robins RubiSurf 1.9 is a CNC Automatic Programmable Cylinder Block and Head Surfacing Machine with a maximum workhead travel of 1400mm (Cylinder Head Length approximately 1200mm)

  • Rubi-Surf 1.9 420mm diameter cutterhead fitted on the machine with extended Cutter head guard.
  • CNC (Computer Numerical Control) Machine Using RubiSmart Series Touch Screen Technology Software.
  • Allows programming to be very simple and easy to learn the machine very quickly. No CNC training needed.
  • Precision Programming And Control via a 10″ (250 mm) Computerized Touch Screen.
  • Software For Programmable & Automated Cycles such as single pass or multi-pass to pre-set depth for machining can be pre-set.
  • Machine / Computer can operate In either Inch Or Metric System
  • Programmable rapid touch-off -for reduced cycle time. On completion of automatic cycle, cutterhead returns to pre-set vertical zero height
  • Vertical Feed Motor – AC Servo Motors Infinitely Variable
  • Max workhead travel 1400mm; Cylinder Head length aprox 1200mm
  • Vertical And Spindle Load Monitoring for Fast Overload Shut Down
  • Precision Position Display In .001″ (.02Mm) Resolution.
  • Electronic Hand Wheel For Manual Movement – Per Click: Mode Fine .001″ (.02mm); Rapid 0.005″ ( 0.10mm)
  • High Performance Spindle Rotation Ac Induction Motor – Infinitely Variable To 900 Rpm for machining Cast iron and Aluminum cylinder heads and blocks.
  • Infinitely Variable travel feeds Feed rates from 125 mm to 500 mm/min for desired surface finish. Adjustable On Screen During Automatic Cycles
  • Slideways coated with low friction turcite for durability.
  • Multi piece metal slideway cover protects ball screw and slideways from dust and chips.
  • Central Lubrication System; cutterhead guard; Large Base makes it easy to mount fixtures.
  • Newly designed Depth and leveling dial indicator assembly–on linear slide fitted on the Column assembly. Dial attachment slides in cross ( Y) direction for levelling of cylinder heads as well as rapid touch off and cutter depth set-up on cylinder head surface. (ROBINS-FIRST)
  • PCD Round Insert, 3/8″ IC, for super finishing aluminum
  • CBN Round Insert, 3/8″ IC, for cast iron
  • CBN Round Insert , 1/2″ IC, for cast iron
  • PCD Round Insert, 1/2″ IC, for super finishing aluminum
  • Leveling Table complete with universal work holding system for cylinder heads and small in-line blocks.
  • Dual Axis Level Assembly
X-Axis Workhead Travel 1400mm
Cylinder Head Length Approx. 1200mm
Cutterhead Diameter 420mm
Spindle Speed 200-1000 RPM Variable (CNC AC SERVO)
Workhead Feed Rate 125-500mm/minute infinitely variable
Operator Panel Touch Screen
Lubrication Centrally Lubricated
Paint Color Code White
