Worldwide leader in the production of maching tooling for the overhauling of endothermic engines, BO BERCO offers to its clients since 1920 a complete range of machineries to meet any demands/requirements.
ABOUT BO BERCO
BT Series
Cylinder Head & Block Line Boring Machines

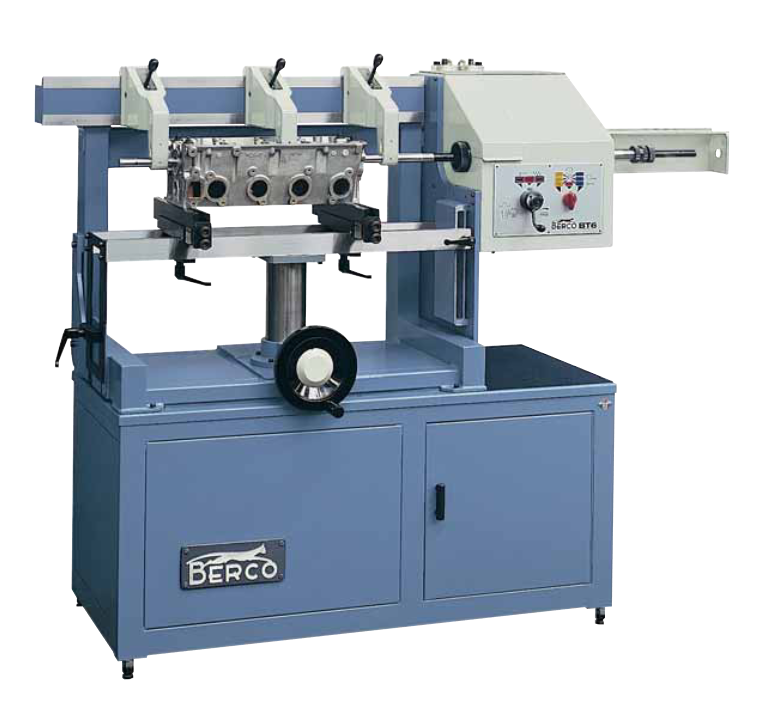

BO Berco BT6VS
|
Boring Range |
25 – 85mm |
|
Max Spindle Traverse |
100mm |
| Min Cylinder Head or Block Length |
295mm |
|
Max Cylinder Head or Block Length |
810mm |
|
Minx and max distance from parallel supports |
44mm |
|
Dimension of Machine (L x W x H) |
1780mm x 800mm x 1385mm |
STC Series
Surface Grinding & Milling Machines

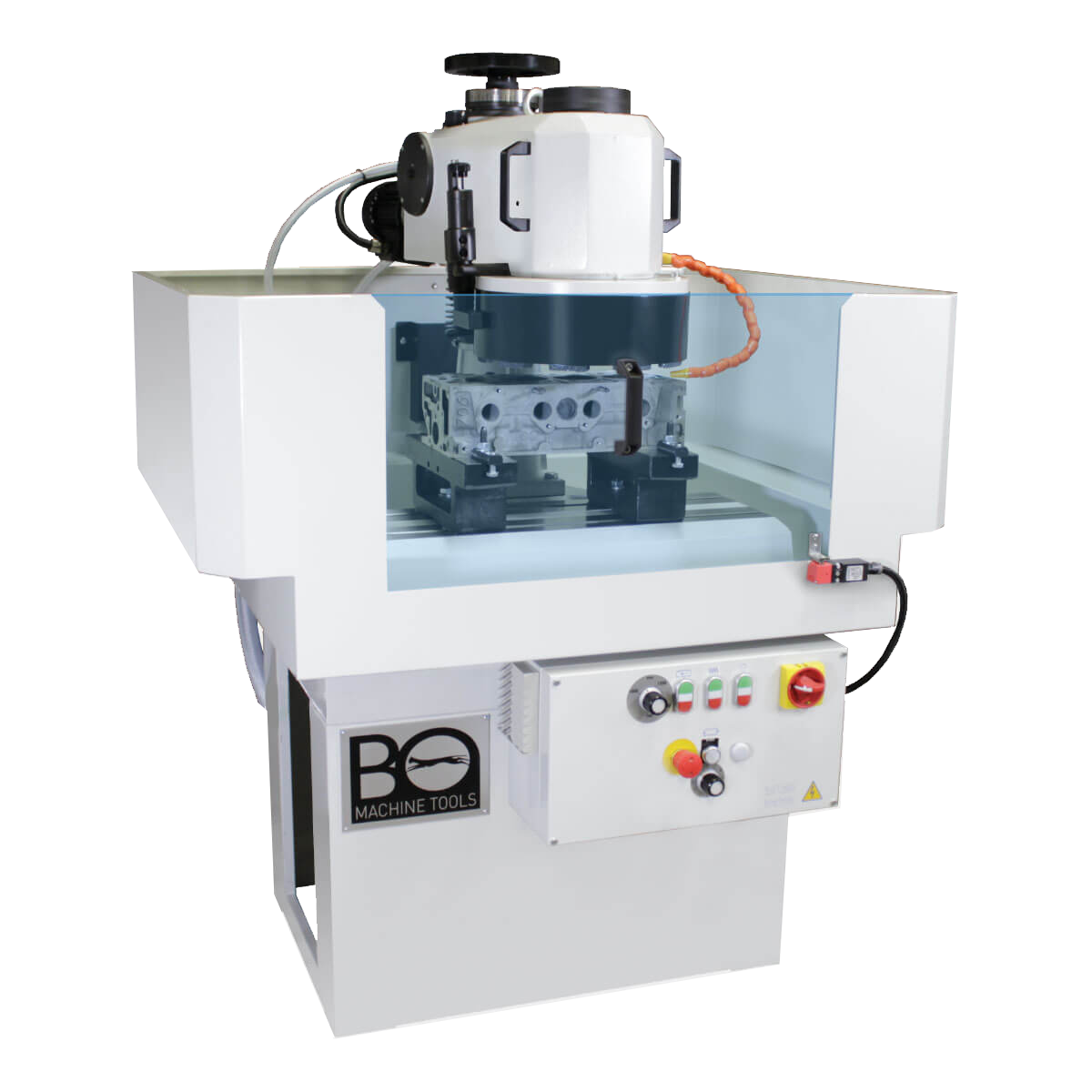

BO Berco STC330
| Table dimension | 670mm x 270mm |
| Max distance between table and wheel | 330mm |
| Grinding wheel vertical displacement | 205mm |
| Grinding wheel diamter | 330mm |
| Variable grinding wheel rotation | 700 – 1500 RPM |
| Variable feed speed | 10 – 145 mm/min |
| Grinding wheel motor power | 2.2 kW |
| Hard feed motor poweer | 0.11 kW |
